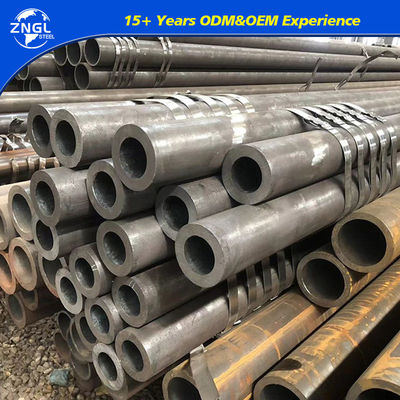

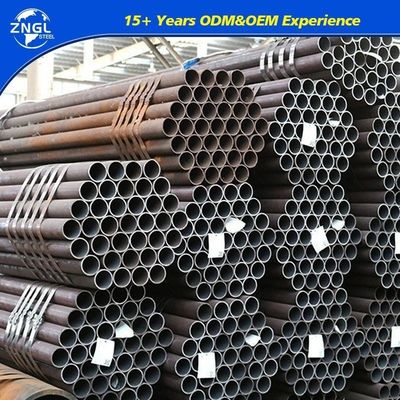

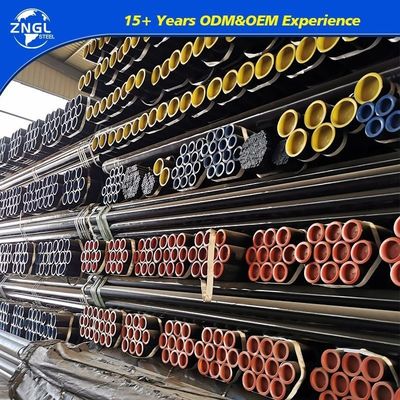

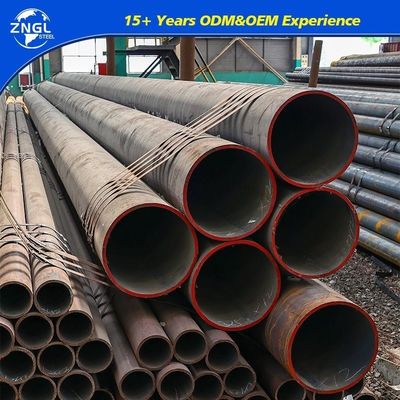

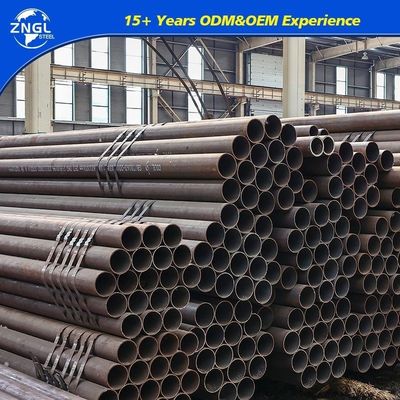

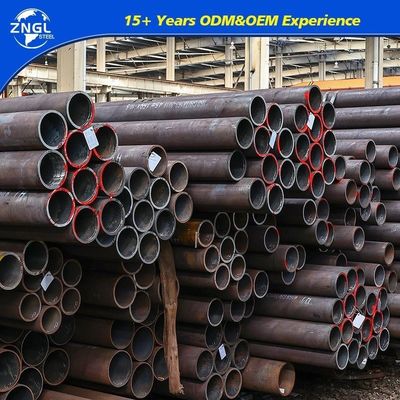

Seamless API 5L API 5CT J55 K55 N80 L80 P110 Oil Casing and Tubing for Oil Well Sizes
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | API 5CT J55/K55 | Section Shape | Customization |
|---|---|---|---|
| Transport Package | 20FT/40FT/Bulk | Specification | 1-10000tons |
| Trademark | Zhongneng Ganglian Steel | Origin | China |
| HS Code | 7610900000 | Supply Ability | 80000 |
| Warranty | Quality Reliable/Available | Type | Seamless |
| Technique | Hot Rolled | Material | Carbon Steel |
| Surface Treatment | Black | Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose |
| Samples | US$ 100/Piece 1 Piece(Min.Order) | Request Sample | Customization | Available | Customized Request |
Product Description
Chemical compositions of casing pipe
| Standard | Grade | Chemical compositions(%) | |||||||||
| API SPEC 5CT | J55 | C | Si | Mn | P | S | Cr | Ni | Cu | Mo | V |
| K55 | 0.34~0.39 | 0.20~0.35 | 1.25~1.50 | ≤0.020 | ≤0.015 | ≤0.15 | ≤0.20 | ≤0.20 | / | / | |
| N80 | 0.34~0.38 | 0.20~0.35 | 1.45~1.70 | ≤0.020 | ≤0.015 | ≤0.15 | / | / | / | 0.11~0.16 | |
| Q125 | ≤0.35 | ------------- | ≤1.35 | ≤0.020 | ≤0.010 | ≤1.50 | ≤0.20 | ≤0.20 | / | / | |
| P110 | 0.26~0.395 | 0.17~0.37 | 0.40~0.70 | ≤0.020 | ≤0.010 | 0.80~1.10 | ≤0.20 | ≤0.20 | 0.15~0.25 | ≤0.08 | |
Mechanical properties of casing pipe
| Grade | Type | Total elongation under load (%) | Yield strength (min)Mpa | Yield strength (max)Mpa | Tensile strength min Mpa | Hardness Max (HRC) | Hardness Max (HBW) |
| J55 | - | 0.5 | 379 | 552 | 517 | - | - |
| K55 | - | 0.5 | 379 | 552 | 655 | - | - |
| N80 | 1 | 0.5 | 552 | 758 | 689 | - | - |
| N80 | Q | 0.5 | 552 | 758 | 689 | - | - |
| L80 | 1 | 0.5 | 552 | 655 | 655 | 23 | 241 |
| L80 | 9Cr | 0.5 | 552 | 655 | 655 | 23 | 241 |
| L80 | 13Cr | 0.5 | 552 | 655 | 655 | 23 | 241 |
| C90 | - | 0.5 | 621 | 724 | 689 | 25.4 | 255 |
| C95 | - | 0.5 | 655 | 758 | 724 | - | - |
| T95 | - | 0.5 | 655 | 758 | 724 | 25.4 | 255 |
| P110 | - | 0.6 | 758 | 965 | 862 | - | - |
| Q125 | All | 0.65 | 862 | 1034 | 931 | - | - |
Casing Pipe Manufacturing Process:
Steel ingot heating → hydraulic punching → reheating → extension → periodic rolling → reheating → sizing → cooling → straightening → pipe cutting → inspection
1. An annular heating furnace is required for ingot heating;
2. Punching and reheating with hydraulic press;
3. The oil casing plant uses a two-roller guide plate extension machine for extension;
4. Re-use a disc heating furnace for periodic rolling, and use a non-entry furnace for reheating, cooling, straightening, pipe cutting, and inspection.
1.Packing :3 layers of packaging, kraft paper inside, water plastic film in the middle, the outermost GI steel plate tied with steel belt or as required.
2.Shipping port: Tianjin/Shanghai/Qingdao
3.Shipment:
a. Length: ≤6m, loaded in 20GP Container.
b. Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
4.Delivery time: Within 7-15 days, depending on the situation
3.Shipment:
a. Length: ≤6m, loaded in 20GP Container.
b. Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
4.Delivery time: Within 7-15 days, depending on the situation
